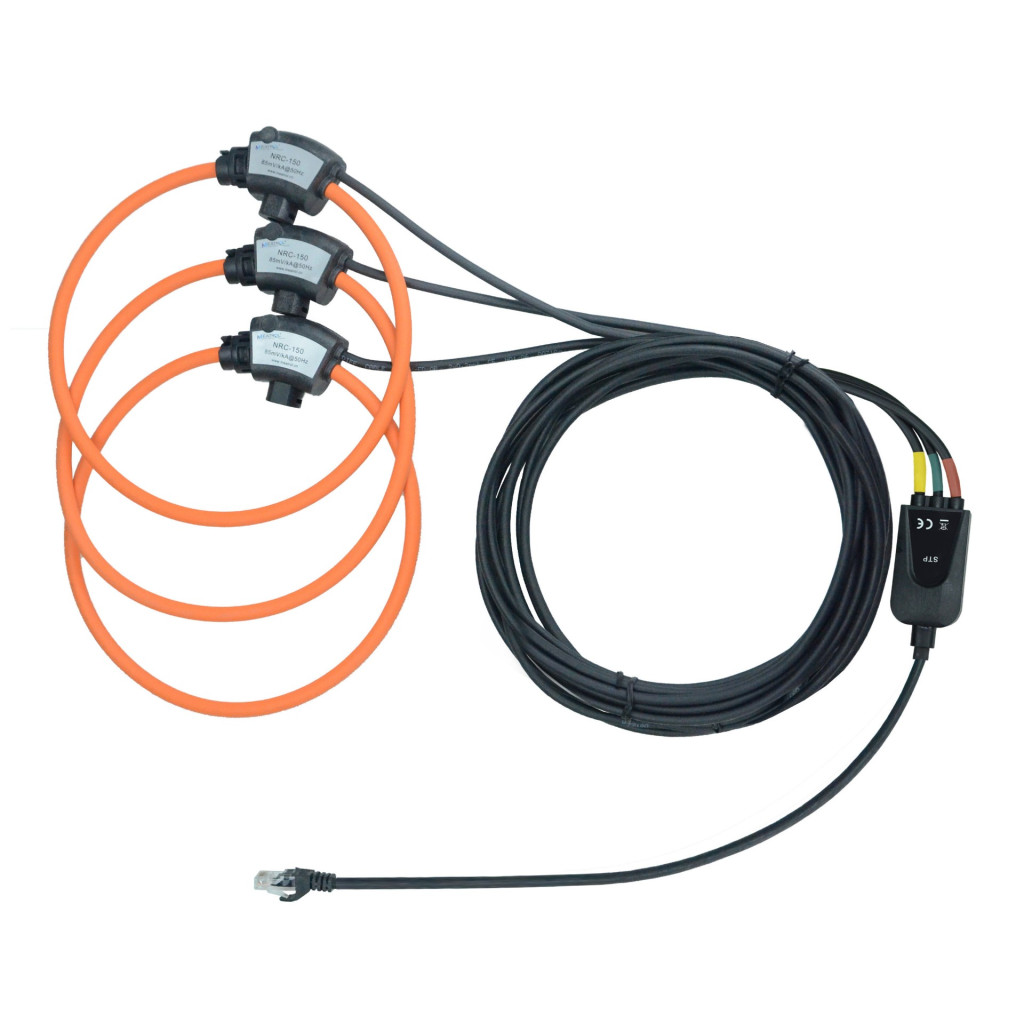

Meatrol split-core RJ45 3-channel current transformer 150mm 2500A / 85mV/kA 2m

Inventory: 0 pcs
Meatrol split-core RJ45 3-channel current transformer 150mm 2500A / 85mV/kA 2m
83.82 EUR+VAT=106.45 EUR
pcs Add to Cart Add to Cart
Request for quotation!
Data Reviews
  • Manufacturer
    Meatrol
    Manufacturer partnumber
    STP-2.5K
    Product family
    STP
    Application
    Submetering, Energy auditing, Industrial automation / PLC
    Size
    150mm
    Case type
    Split core
    Withstand voltage
    600Vac
    Number of channels
    3
    Window diameter
    150mm
    Model
    STP-2.5K
    Primer current
    2500A
    Size type
    Window diameter
    Connection type
    RJ45
    Mounting type
    Clamp-on
    Nominal frequency
    50/60Hz
    Operating temperature
    -30..+80°C
    Rogowski sensitivity (mV/kA)
    85mV/kA
    Cable length (m)
    2m
    Overvoltage category
    CAT III (600V)
    Bandwidth
    1Hz..10kHz (3dB)
    Measurement accuracy (%)
    0,50%
    Dielectric strength
    3kV @50/60Hz 1min
    Inventory
    0 pcs
    Item number
    STP-2-5K
    Website
    http://www.rogowski.cn/Private/ProductFiles/637405...
